| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | Product |
|---|---|---|---|---|---|
| 1 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Product model |
| 2 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Standard configuration |
| 3 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Light curtain source |
| 4 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Application |
| 5 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Features |
| 6 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Number of beams |
| 7 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Beam Space |
| 8 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Protect Height |
| 9 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Overall Height |
| 10 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Cross-section size |
| 11 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Response time |
| 12 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Synchronization |
| 13 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Output mode |
| 14 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Output status |
| 15 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Indicator light |
| 16 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Wavelength |
| 17 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Type of light |
| 18 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Function |
| 19 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Mechanical data |
| 20 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Housing material |
| 21 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Metal shell |
| 22 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Lens front screen material |
| 23 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Upper and lower cover materials |
| 24 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Performance data |
| 25 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Protection circuit |
| 26 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Supply voltage |
| 27 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Output Current |
| 28 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Fuse |
| 29 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Maximum residual current |
| 30 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Environmental data |
| 31 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Protection grade |
| 32 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Anti-optical interference |
| 33 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Operating Temperatuer |
| 34 | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | afetycurtainadministrator-Michelle | 11/05/2026 07:18 AM | Operating Humidity |

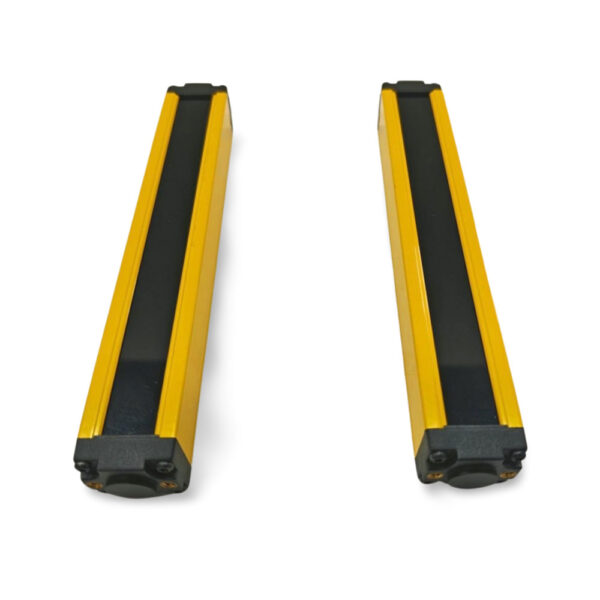

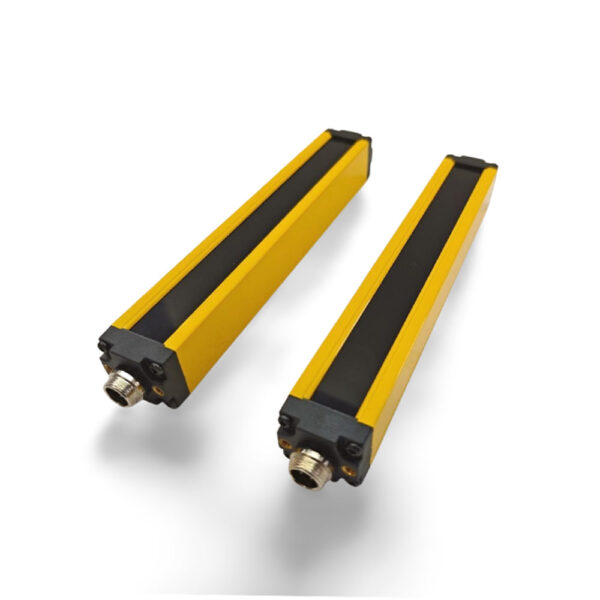

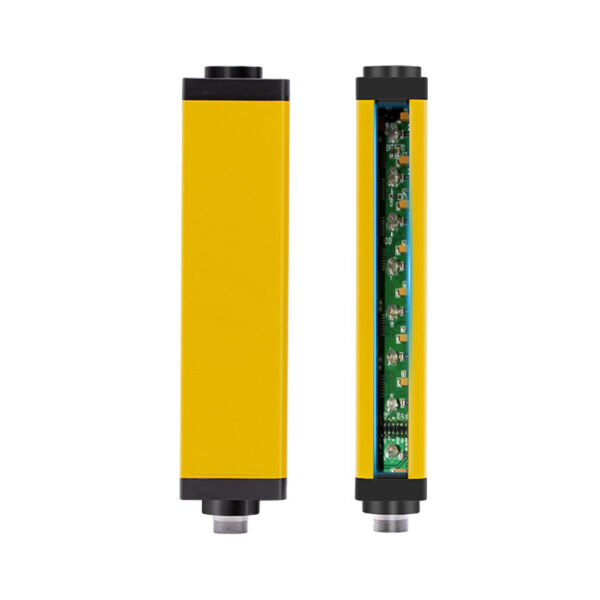

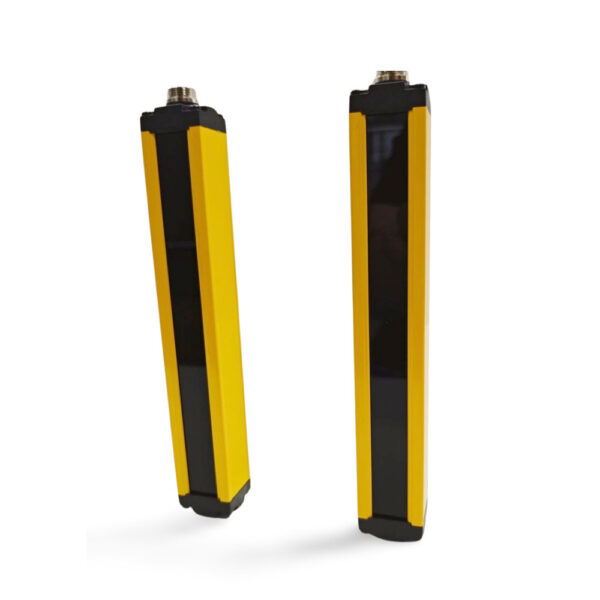

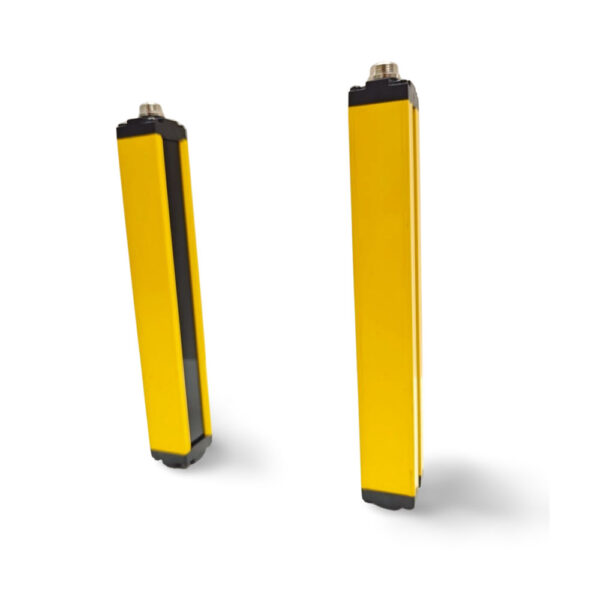

8-Beam Infrared Safety Light Barrier for Machine Guarding
This infrared safety light barrier is built for standard industrial environments, using 8 beams with 10mm spacing and a 70mm protection height. It offers ≤ 15ms response, 24V DC operation, protected PNP outputs, aluminum housing, and IP65 protection.
|
Wiring Diagram
Use the wiring diagram below to connect the safety light curtain emitter and receiver correctly. The sensor supports different output types, including NPN/NC and PNP/NC, depending on the selected model.
Wire Connection
| Wire Color | Function | Description |
|---|---|---|
| Brown | VCC | DC24V power supply |
| Blue | GND | 0V power ground |
| Black | OSSD1 | Safety output 1 |
| Grey | OSSD2 | Safety output 2 |
| Yellow | PE | Protective earth connection |
| White | CP | Communication / synchronization line |
NPN Output Wiring
For NPN models, connect OSSD1 Black and OSSD2 Grey according to the NPN/NC wiring diagram. Ensure the load and control circuit are compatible with NPN output signals.
PNP Output Wiring
For PNP models, connect OSSD1 Black and OSSD2 Grey according to the PNP/NC wiring diagram. Ensure the load and control circuit are compatible with PNP output signals.
Installation Notes
Before wiring, disconnect the power supply and confirm the output type of the safety light curtain. Use a stable DC24V power supply and follow the wiring diagram carefully to ensure safe and reliable operation. Wiring should be completed by qualified personnel.
